Custom Capsule, Pellet, Pill and Tablet Die Sets for Small Lab Presses

Pharmaceutical and Nutraceutical Die Sets

Pharmaceutical and Nutraceutical Die Sets
REFLEX Analytical offers custom capsule, pellet, pill and tablet die sets up to 22mm diameter or length that can be used with smaller benchtop laboratory presses with limited daylight between press faces such as the 2 Ton Mini Press and 2.5 Ton Pellet Press

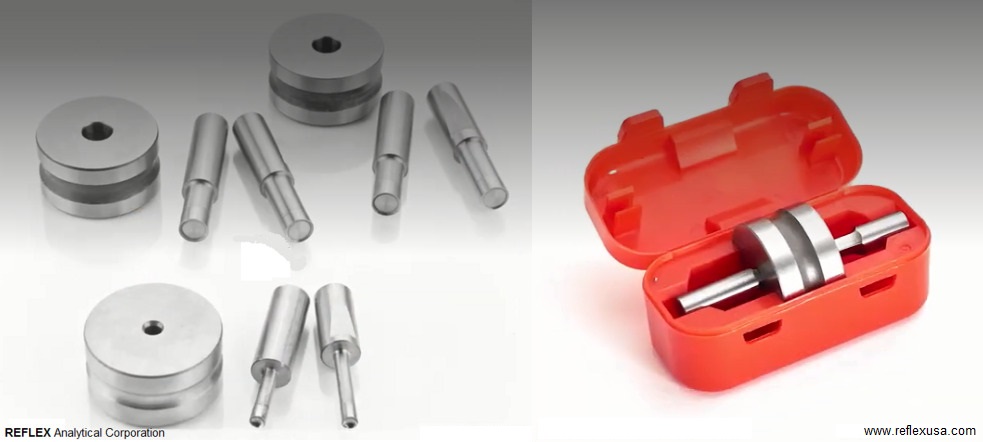

Each die is precision fabricated from high quality Stainless Steel. The assembly includes a die chamber, bottom anvil, plunger and extraction ring. To preview available shapes CLICK HERE. They are perfect for small scale analytical, pharmaceutical and nutraceutical sample fabrications. Scroll below for pricing and order details.

CLICK HERE to preview other solid and semi-solid sampling accessories such as evacuable pellet dies, XRF dies, heated dies, manual and auto lab presses, polymer film makers, and much more.
Send Page to Friend

Custom Shape Die Sets
For Use With Short 2 Ton Mini Press 3940MP

Sizes up to 22mm diameter or length. Maximum compressed depth 6mm. Maximum fill depth 16mm. Includes die chamber, bottom anvil, plunger and extraction ring. Select shape and advise size. Call or email before ordering.

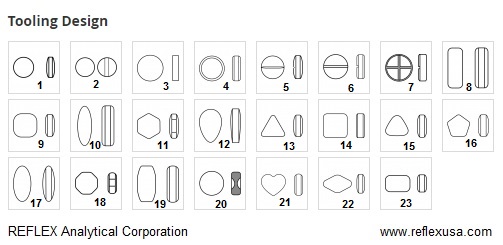

Preview Shapes CLICK HERE
$795.00
3940MPD-XXX
Shape:
Custom Shape Die Sets
For Use With 2.5 Ton Pellet Press 181-1400

Sizes up to 22mm diameter or length. Maximum compressed depth 4mm. Maximum fill depth 8mm. Includes die chamber, bottom anvil, plunger and extraction ring. Select shape and advise size. Call or email before ordering.

Preview Shapes CLICK HERE
$795.00
181-1400D-XXX
Shape:
