2 Ton Mini Press MPx2

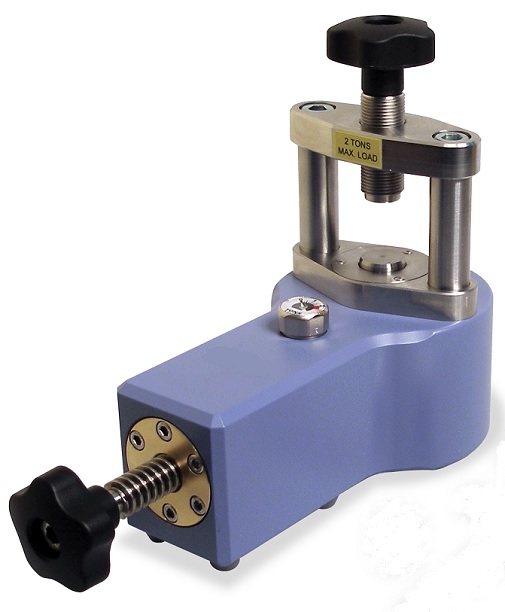

The Mini Press MPx2 is a compact, portable and maintenance free 2 Ton (4000 psi) hydraulic conversion press that is perfect for fabricating any pellet or tablet geometry (circular, square, rectangular, oval, etc.) ranging in size from 2 – 22mm.
The MPx2 permits the use of smaller non-evacuable dies and evacuable dies. Scroll below for the sizes associated with non-evacuable and hardened 440C Stainless Steel evacuable dies that can be used with the MPx2; as well as custom capsule, pellet, pill and tablet die sets that can be used with Short Mini Press 3940MP. Tungsten Carbide dies are available upon request. The Mini Presses and dies can be purchased separately. Scroll below for order details.

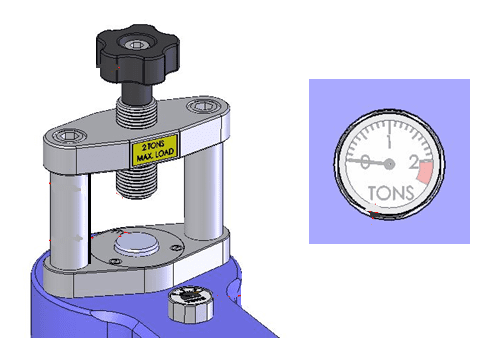

The Mini Press MPx2 enables the user to apply the required load for sample preparation through the simple rotation of a load knob. Accurate visual pressure readings are established with the pointer gauge which contributes to reproducibility and greater productivity. The pressure gauge eliminates the guess work commonly associated with lever action, hand operated torque wrench and bolt presses. The shorter MPx2 press configuration measures 4.33” (W) x 8.5” (D) x 10.50” (H) with maximum 50mm daylight between pressing faces and weighs only 9 pounds while the taller MPx2 press measures 4.33” (W) x 8.5” (D) x 12.50” (H) with maximum 100mm daylight between pressing faces and weighs 11 pounds. CLICK HERE to download and preview the product sheet for the shorter Mini Press along with instructions for pellet fabrication.
The Mini Press MPx2 is ideal for fabricating pellets for bomb calorimetry, particularly when working with finely powdered samples. Although some powdered materials burn well in an Oxygen bomb, while others such as benzoic acid, must be pelletized for safe combustion and best results. There are several advantages by burning samples in pellet form instead of a loose powder. Foremost, some materials have dangerously high burning rates if burned as a loose powder. These rates can be restricted to safe levels by compressing the powder into a pellet or briquette. Secondly, loose powders exposed to the turbulent gases produced during a bomb combustion may be blown out of the sample cup and extinguished by the cold bomb wall before they have burned completely. A pelletized sample will be held in the combustion zone with a much better chance for complete combustion. Lastly, pelletized samples are easy to handle and weigh; they lie flat in the combustion capsule and ignite easily.
Pelletized samples are equally important in other investigative and test procedures. Laboratories engaged in pharmaceutical, biological, nutrition and spectrographic operations find frequent uses for tablets, capsules and wafers of the types that can be made in the Mini Presses. Spectroscopists find this device excellent for preparing small samples to be analyzed in an emission spectrometer.
The MPx2 permits the use of smaller non-evacuable dies and evacuable dies. Scroll below for the sizes associated with non-evacuable and hardened 440C Stainless Steel evacuable dies that can be used with the MPx2; as well as custom capsule, pellet, pill and tablet die sets that can be used with Short Mini Press 3940MP. Tungsten Carbide dies are available upon request. The Mini Presses and dies can be purchased separately. Scroll below for order details.
The Mini Press MPx2 enables the user to apply the required load for sample preparation through the simple rotation of a load knob. Accurate visual pressure readings are established with the pointer gauge which contributes to reproducibility and greater productivity. The pressure gauge eliminates the guess work commonly associated with lever action, hand operated torque wrench and bolt presses. The shorter MPx2 press configuration measures 4.33” (W) x 8.5” (D) x 10.50” (H) with maximum 50mm daylight between pressing faces and weighs only 9 pounds while the taller MPx2 press measures 4.33” (W) x 8.5” (D) x 12.50” (H) with maximum 100mm daylight between pressing faces and weighs 11 pounds. CLICK HERE to download and preview the product sheet for the shorter Mini Press along with instructions for pellet fabrication.
The Mini Press MPx2 is ideal for fabricating pellets for bomb calorimetry, particularly when working with finely powdered samples. Although some powdered materials burn well in an Oxygen bomb, while others such as benzoic acid, must be pelletized for safe combustion and best results. There are several advantages by burning samples in pellet form instead of a loose powder. Foremost, some materials have dangerously high burning rates if burned as a loose powder. These rates can be restricted to safe levels by compressing the powder into a pellet or briquette. Secondly, loose powders exposed to the turbulent gases produced during a bomb combustion may be blown out of the sample cup and extinguished by the cold bomb wall before they have burned completely. A pelletized sample will be held in the combustion zone with a much better chance for complete combustion. Lastly, pelletized samples are easy to handle and weigh; they lie flat in the combustion capsule and ignite easily.
Pelletized samples are equally important in other investigative and test procedures. Laboratories engaged in pharmaceutical, biological, nutrition and spectrographic operations find frequent uses for tablets, capsules and wafers of the types that can be made in the Mini Presses. Spectroscopists find this device excellent for preparing small samples to be analyzed in an emission spectrometer.
 Short Mini Press For Use With Non-Evacuable 7mm and Evacuable 3mm, 5mm, 6mm and 8mm Dies $1,490.00 |  Short and Tall Mini Press Package For Evacuable and Non-Evacuable Pellet Dies $2,895.00 |
Extra Value Solid Pack includes 2 ton short mini press, 7mm pellet die and pellet ring holder, 7mm spare pellet ring holder, 7mm disc holder with slide mount, KBr powder, agate mortar and pestle $2,155.00 | Extra Value Solid Pack II includes 2 ton short mini press, 7mm pellet die and pellet ring holder and 7mm disc holder with slide mount $1,860.00 |
1mm or 3mm Non-Evacuable Pellet Die Set with Universal Die Holder For Use With Short Mini Press 3940MP $795.00 |  1-3-7mm Non-Evacuable Pellet Die Set For Use With Short Mini Press 3940MP (refer to product sheet above for images and details) $595.00 |
 3-5-6-8mm Evacuable Pellet Die Sets For Use With Short Mini Press 3940MP (refer to product sheet above for images and details) $1,395.00 |  Custom Shape Die Sets For Use With Short Mini Press 3940MP Sizes up to 22mm diameter or length. Maximum compressed depth 6mm. Maximum fill depth 16mm. Includes die chamber, bottom anvil, plunger and extraction ring. Select shape and advise size. Call or email before ordering. Preview Shapes CLICK HERE $1,195.00 |
 Standard Hardened 440C Stainless Steel Circular Evacuable Pellet Die Sets For Use With Tall Mini Press 3940MPx2. Assembled with hardened 440C Stainless Steel Pellets(2). Tungsten Carbide Pellets(2) optional. Contact REFLEX Analytical to address non-standard sizes (2 - 22mm) and geometries. $1,395.00 |  Hardened 440C Stainless Steel Non-Evacuable and Evacuable Pellet Die Sets For Use With Tall Mini Press 3940MPx2. Assembled with hardened 440C Stainless Steel Pellets(2). Tungsten Carbide Pellets(2) optional. Contact REFLEX Analytical to address size (2 - 22mm) and geometry. |
 Standard Non-Evacuable Pellet Die Sets For Use With Tall Mini Press 3940MPx2
Universal Die Holder 2810MPx2 Required $595.00 |  Optional Non-Evacuable Pellet Die Sets For Use With Tall Mini Press 3940MPx2
Universal Die Holder 2810MPx2 Required $1,195.00 |
 Universal Die Holder for Non-Evacuable Pellet Die Sets For Use With Tall Mini Press 3940MPx2 $395.00 | 3” x 2” Mount for 5-6-7-8mm Die Sets (refer to product sheet above for images and details) $205.00 |
Custom Shape Die Sets Sizes up to 3/4” length or diameter with flat faces. Set includes die plunger and die chamber. Select shape and advise size. For Use With Tall Mini Press 3940MPx2 Universal Die Holder 2810MPx2 Required Preview Shapes CLICK HERE $1,495.00 |  Oil-Less Vacuum Pump 110V 1/8 hp motor and vacuum gauge. size 7.625” x 5.125” x 8.0” and weighs 45lbs $1,395.00 |
