Square and Rectangular Evacuable Pellet Dies

Square and Rectangular Evacuable Pellet Dies

REFLEX Analytical offers a series of custom evacuable square and rectangular pellet die assemblies. Sizes range from 3mm up to 101.6mm. Larger, customized geometries and dimensions are encouraged and available upon request. Click on the above representative image to enlarge and become familiar with each die component. Contact REFLEX Analytical with the die specification your application requires.

Each evacuable pellet die is precision fabricated from high quality hardened 440C stainless steel. The assembly includes a die chamber, one set of anvils(2), a plunger, a evacuable stepped baseplate and an extraction ring to facilitate sample pellet removal. The overall assembled height including the die chamber, stepped baseplate, two anvils and plunger but without sample powder is 104mm. The die chamber only dimensions are 50mm height x 45mm outside diameter with each anvil measuring 10mm thickness (two anvils are typically used for pellet fabrication although one anvil could be used for thicker pellet fabrication).

REFLEX Analytical recommends the review of the chamber height to confirm there is adequate height to fabricate a pellet to the desired pellet thickness. Also ensure there sufficient height between the top and bottom press rams. The pellet dies are commonly used with our series of laboratory presses.

Tungsten carbide anvils are optional and ideal for hard or abrasive powdered sample materials which may tend to mar the surface of stainless steel anvils. Notably, the tungsten carbide transverse rupture strength is 500,000 psi and hardened Stainless Steel is 100,000 psi. Therefore theoretically, tungsten carbide offers 5x the compression strength when compared to hardened stainless steel. A tungsten carbide die chamber and die plunger are also higher cost options.

Other options include a 200°C heating jacket and digital temperature controller; and an optional centered thermocouple port for a customer supplied thermocouple and independent temperature read out.

CLICK HERE to preview other solid and semi-solid sampling accessories such as evacuable pellet dies, XRF dies, heated dies, manual and auto lab presses, polymer film makers, and much more.

Send This Page to a Colleague
Custom Square Evacuable Pellet Dies
Custom Square Evacuable Pellet Dies

Size: up to 101.6mm square. specify dimension.

Request For Quotation

Precision manufactured from hardened 440C stainless steel and includes a main body, a removable base with a vacuum attachment, (2) polished anvils, plunger, (2) vacuum o-rings, extractor ring and operating instructions. The overall assembled height including the die chamber, baseplate, two anvils and plunger but without sample powder is 104mm. The die chamber only dimensions are 50mm height x 45mm outside diameter with each anvil measuring 10mm thickness (two anvils are typically used for pellet fabrication although one anvil could be used for thicker pellet fabrication).

Maximum Load: Dependent Upon Die Size

Optional: Tungsten Carbide Anvils

Optional: 200°C Heating Jacket and Digital Temperature Controller

Optional: Centered Thermocouple Port for a customer supplied thermocouple and independent temperature read out.

Tips

- allow 6mm minimum to locate the die plunger into the die chamber in order to follow the die chamber wall.

- review of the chamber height to confirm there is adequate height to fabricate a pellet to the desired pellet thickness.

- ensure there sufficient height for the die assembly with sample powder between the top and bottom press rams.

- the evacuable design feature with the use of an oil-less vacuum pump permits easy installation of anvils and plunger without the vacuum resistance normally associated with non-evacuable dies due to the precision fabrication and tight tolerances to mitigate flashing of the powdered sample matrix during pellet fabrication.

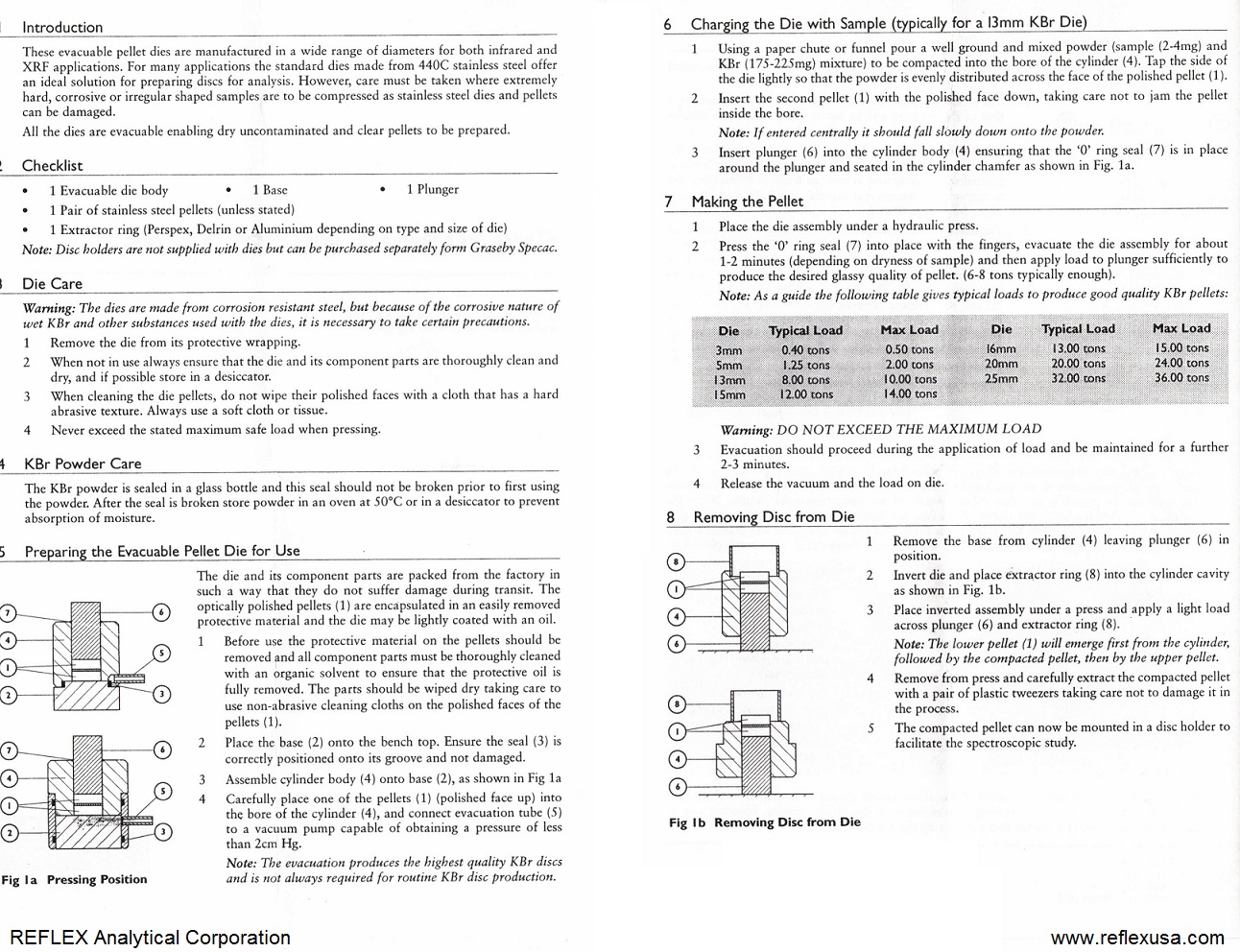

Operating Instructions CLICK HERE
Custom Rectangular Evacuable Pellet Dies
Custom Rectangular Evacuable Pellet Dies

Size: up to 101.6mm length. specify length & width.

Request For Quotation

Precision manufactured from hardened 440C stainless steel and includes a main body, a removable base with a vacuum attachment, (2) polished anvils, plunger, (2) vacuum o-rings, extractor ring and operating instructions. The overall assembled height including the die chamber, baseplate, two anvils and plunger but without sample powder is 104mm. The die chamber only dimensions are 50mm height x 45mm outside diameter with each anvil measuring 10mm thickness (two anvils are typically used for pellet fabrication although one anvil could be used for thicker pellet fabrication).

Maximum Load: Dependent Upon Die Size

Optional: Tungsten Carbide Anvils

Optional: 200°C Heating Jacket and Digital Temperature Controller

Optional: Centered Thermocouple Port for a customer supplied thermocouple and independent temperature read out.

Tips

- allow 6mm minimum to locate the die plunger into the die chamber in order to follow the die chamber wall.

- review of the chamber height to confirm there is adequate height to fabricate a pellet to the desired pellet thickness.

- ensure there sufficient height for the die assembly with sample powder between the top and bottom press rams.

- the evacuable design feature with the use of an oil-less vacuum pump permits easy installation of anvils and plunger without the vacuum resistance normally associated with non-evacuable dies due to the precision fabrication and tight tolerances to mitigate flashing of the powdered sample matrix during pellet fabrication.

Operating Instructions CLICK HERE
200°C Heating Jacket and Temperature Controller Only
200°C Heating Jacket and Temperature Controller for Evacuable Pellet Dies with 50mm Tall Die Chamber

Available Die Sizes: 3mm up to 1 1/8 inches

Die Chamber Outside Diameter: 45mm
$1,700.00
3190HJTC
