Type 49 UV Quartz Demountable Flow Through Cuvettes
Product Description
Please select from the drop down menus and assure the part number's last digit(s) corresponds to the desired pathlength. Depending on the selected pathlength, the unit pricing will adjust either up, down or remain the same. REFLEX Analytical welcomes your contact if assistance is required.
Precision fabricated cuvettes with high quality optical properties for optimal spectral performance. Assembled by direct fusion without the use of adhesives ensuring resistance to chemical attack and extremes of temperature. Custom cuvettes are encouraged and available upon request.

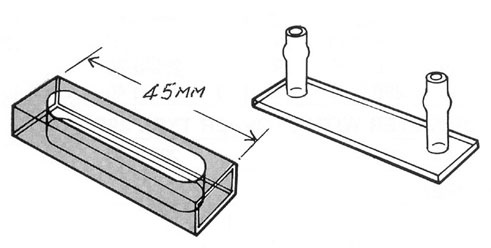

Standard demountable cuvettes with two flow through ports. Satin finish on two sides. Dimensions 45mm height x 12.50mm wide. Requires standard cell holder.
Application: UV-Vis
Material: UV Quartz
Standard Pathlengths: 1mm 10mm
CLICK HERE to download the Cuvettes and Cells Catalog to preview pathlength, cell dimensions and cell volume.
Percentage Transmission: > 80% @ 200nm
CLICK HERE to download the transmission performance curves for UV Quartz, IR Quartz and glass materials.
Precision fabricated cuvettes with high quality optical properties for optimal spectral performance. Assembled by direct fusion without the use of adhesives ensuring resistance to chemical attack and extremes of temperature. Custom cuvettes are encouraged and available upon request.
Standard demountable cuvettes with two flow through ports. Satin finish on two sides. Dimensions 45mm height x 12.50mm wide. Requires standard cell holder.
Application: UV-Vis
Material: UV Quartz
Standard Pathlengths: 1mm 10mm
CLICK HERE to download the Cuvettes and Cells Catalog to preview pathlength, cell dimensions and cell volume.
Percentage Transmission: > 80% @ 200nm
CLICK HERE to download the transmission performance curves for UV Quartz, IR Quartz and glass materials.
