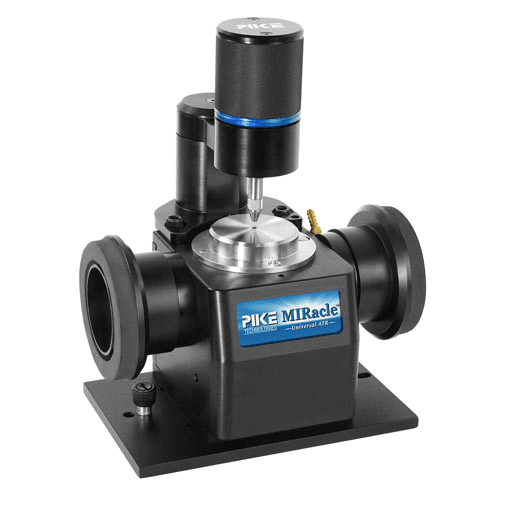

A desired favorite in the analytical community, the MIRacle is an economical and universal ATR sampling accessory for analysis of solids, liquids, pastes, gels, and intractable materials. In its most popular configuration it is a single reflection ATR accessory with high IR throughput which makes it ideal for sample identification and QA/QC applications. In a comparative ATR reflection accessories study, the MIRacle displayed greater than 40% energy throughput which translates into the highest sensitivity and more detailed analytical results. The unique engineering and design supports interchangeable crystal top plates allowing the analysis of a broad spectrum of sample types while ensuring constant sampling pathlength. An assortment of crystal materials and single, 3 and 9 reflection ATR crystals are available to optimize general qualitative or quantitative analysis.
The MIRacle ATR accessory can be configured with five different crystal types: Diamond/ZnSe, Diamond/KRS-5, ZnSe, Ge and Si which are available in 1, 3 and 9 reflection formats. Trough and flat plate configurations are options for the multiple reflection plates. The removable crystal plates are pinned in place for repeatability and are easily changeable within seconds with no alignment required. With this flexibility, you can change the crystal type to exactly match your sampling requirements. For example, Diamond is ideal for brittle samples because it will not scratch, whereas Ge is ideal for carbon-filled samples because of its high refractive index and lower depth of penetration. Optional single reflection Diamond crystal plates are available; Diamond/ZnSe and Diamond/KRS-5. The Diamond/KRS-5 offers a full spectral range to 250 cm-1. Multiple reflection crystal plates provide increased sensitivity for minor components in liquid samples. 3 reflection Diamond/ZnSe crystal plates are available in flat and trough style, and 9 reflection Diamond/ZnSe is offered in trough style only. Hastelloy ATR crystal plate assemblies are also available for harsh chemical applications.
As the demands for your analytical investigations increase, you can refer to this
Product DataSheet to assist with ordering options (scroll below) for the MIRacle Single Reflection ATR including various single and multiple reflection top plates with choice of ATR crystals, sealed liquids top plate, liquid flow through cell, heating and digital pressure control.
CLICK HERE to watch a video demonstrating the accessory’s impressive sampling capabilities.
Features
• Highest IR Throughput
• Complete Sampling Flexibility
• Highest Value
• Single or Multiple Reflections Interchangeable ATR Crystal Plates: Diamond, ZnSe, Ge, Si
• Highest Purity Type IIa Diamond Crystal
• Choice of High-Pressure, Digital High-Pressure and Micrometric Sample Clamps
• Optional up to 60°C Temperature Control, Flow-Through Attachment, Specular Reflectance Plate and Sealed Clamp
