20mm Evacuable Pellet Die

Part Number:3165

Precision manufactured from hardened 440C stainless steel and includes a main body, a removable base with a vacuum attachment, (2) polished anvils, plunger, (2) vacuum o-rings, extractor ring and operating instructions.

Die Chamber Height Without Sample: 48mm

Each Die Anvil Thickness: 9.50mm

Maximum Height In Die Chamber For Uncompressed Sample Matrix Using Two Anvils: 23mm (accounts for locating die plunger 6mm into die chamber)

Maximum Height In Die Chamber For Uncompressed Sample Matrix Using One Anvil: 32.50mm (accounts for locating die plunger 6mm into die chamber)

Maximum Load: 24 Tons

Tips

- typically the sample pellet is fabricated between two anvils although one anvil can be used to fabricate a thicker sample pellet.

- allow 6mm minimum to locate the die plunger into the die chamber in order to follow the die chamber wall.

- the evacuable design feature with the use of an oil-less vacuum pump permits easy installation of anvils and plunger without the vacuum resistance normally associated with non-evacuable dies due to the precision fabrication and tight tolerances to mitigate flashing of the powdered sample matrix during pellet fabrication.

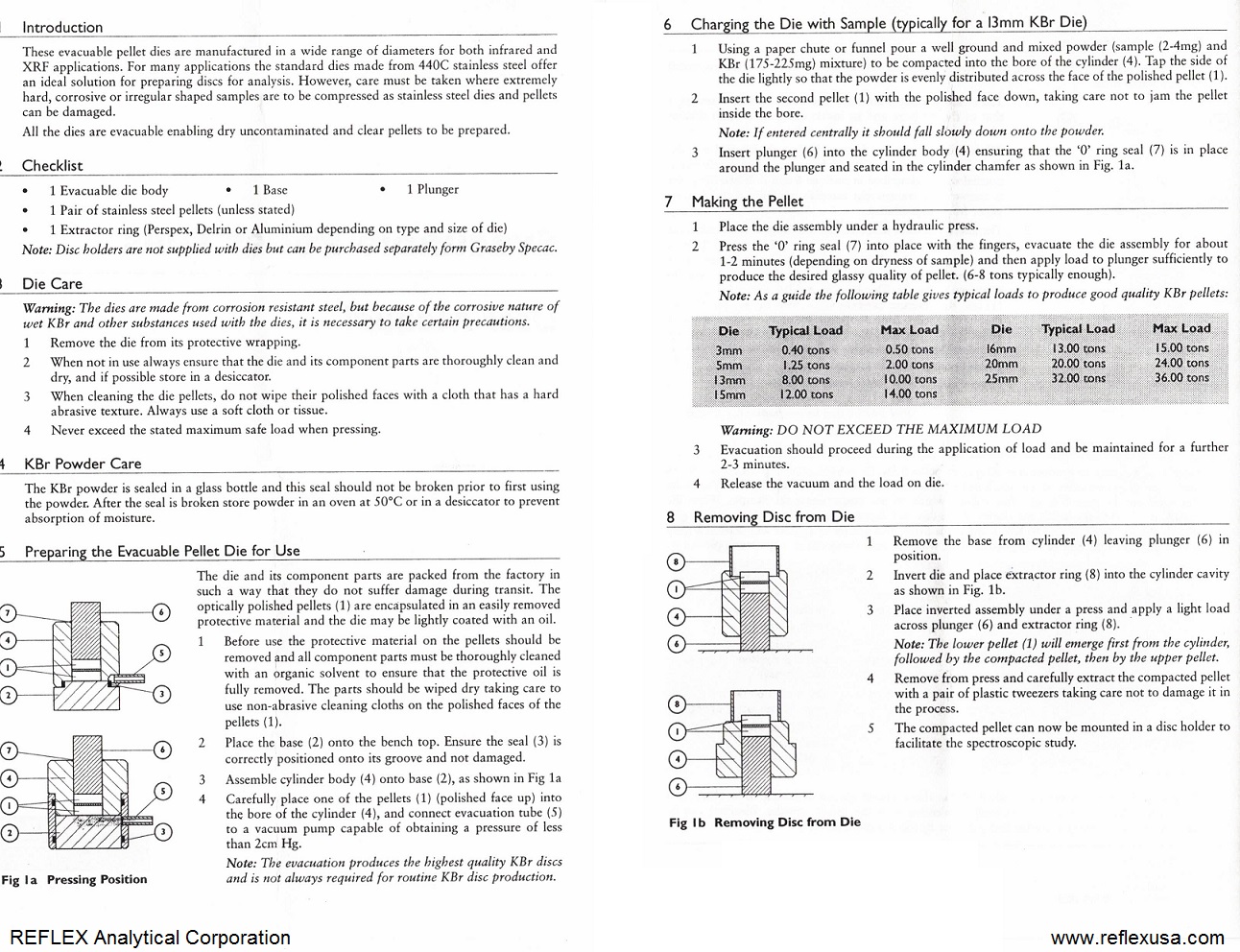

Operating Instructions CLICK HERE
