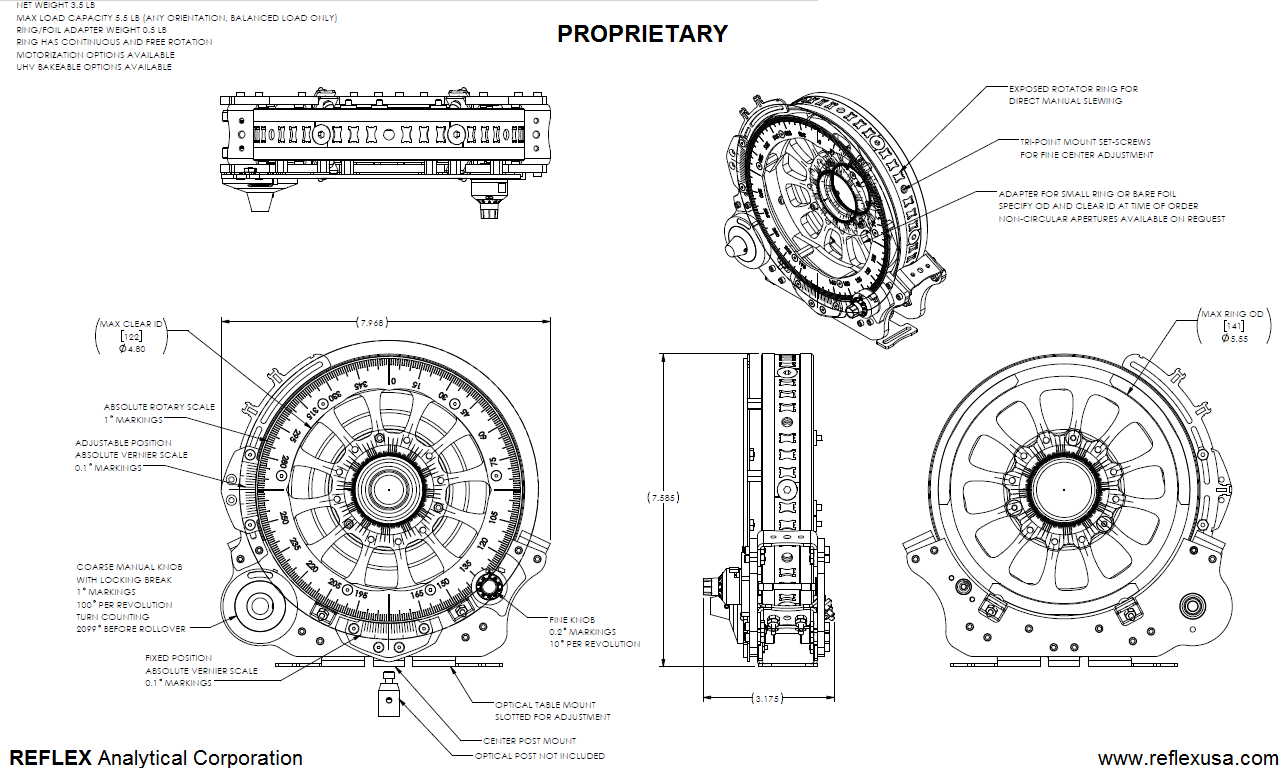

Click on the image above to enlarge and appreciate the precision engineered design.
CLICK HERE to download the product sheet.
Key Features
• Continuous 360° Rotation: an unrestricted, free-rotating ring mechanism equipped with an absolute 360° scale (1° markings) for rapid orientation and reference.
• Dual-Speed Manual Control:
Coarse Adjustment: 100° per revolution with a locking brake, turn counting, and an extended range of up to 2099° before rollover.
Fine Adjustment: 0.2° resolution markings with 10° per revolution for ultra-fine alignment.
• Absolute Vernier Scales: Includes both a fixed-position and an adjustable-position absolute vernier scale (1° markings) for precise, repeatable angular readouts.
• Flexible Component Integration: Accommodates large optical rings up to 5.55” (141 mm) OD and clear apertures up to 4.80” (122 mm). Bare, un-mounted optics can be easily coupled using o-rings.
• Robust Mechanical Design: Built to maintain stability across any orientation under balanced load conditions, featuring a slotted base for optical table positioning and a center post mount configuration.
Technical Specifications
Net Weight 3.50 lbs (1.59 kg) (Ring/Foil Adapter: +0.50 lbs)
Max Load Capacity 5.50 lbs (2.50 kg) — Any orientation, balanced load only
Max Optic/Substrate Weight 2.00 lbs (0.91 kg)
Maximum Component OD 5.55” (141.0 mm)
Clear Aperture (ID) 4.80” (122.0 mm)
Max Optic / Substrate Thickness 0.50” (12.70 mm)
Overall Dimensions 7.968” W x 7.585” H x 3.175” D
Mounting Interfaces Slotted optical table mount; center post mount (Optical post not included)
Customization & Modular Options
To tailor this mount to your specific experimental or industrial requirements, several factory-configured options and upgrades are available:
• Motorization Package: Integrates a NEMA-14 frame 4-wire stepper motor that actuates the ring at 0.05° (3 arc-minutes) per full step. Micro-stepping configurations easily drive ring actuation down into the sub-arc-second range.
• Control Systems: Compatible with simple handheld controllers or advanced PLC systems featuring touchscreen interfaces.
• Ultra-High Vacuum (UHV): In-vacuum and UHV bakeable variants available for sealed or high-vacuum environments.
• Multi-Component Upgrade: A secondary adjustable angle guide with a reversible design permits the mounting of up to four optical rings simultaneously.
• Custom Optical Adapters: Optional optical ring adapters available upon request (specify desired OD and clear ID at time of order). Non-circular apertures can be custom-machined upon request.
