Quest Single Reflection ATR

Quest Single Reflection ATR Accessory

The Quest Single Reflection Diamond ATR Accessory is convincingly the best development for modern-day ATR Spectroscopy and it may be the only accessory you will ever need for quantitative and qualitative mid-infrared and far-infrared analysis of solids, powders, liquids, pastes and gum-like samples. It is a high performance accessory with superior infrared energy throughput using highly reflective gold coated mirrors interfaced with a robust and durable type IIIa monolithic Diamond sampling surface. A 1.60mm diameter sample area requires the smallest amount of sample material allowing greater productivity with faster clean up and repeat sample analysis.

The Quest with optional heated top plates includes software and USB temperature control capable of heating samples up to 110°C allowing real-time monitoring of spectral performance, automated temperature programming and control, data collection and logging.

CLICK HERE for the Quest Datasheet and highlighted design features including top plate spectral performances. You too will be convinced the future of ATR Spectroscopy is here. Scroll below for order details.

The Type IIIa monolithic Diamond is available for performance in either the 7,800cm-1 to 400cm-1 or 10,000cm-1 to 40cm-1 extended range. Unlike other Diamond ATR accessories which use thin and weak anti-reflection coated wafers that have a tendency to break and delaminate; the Quest’s monolithic Diamond is supreme in strength and spectral performance for reason of its genuine natural state and inherent characteristics. Furthermore, the Quest replaces older legendary ATR accessories that require expensive ATR crystals and the use of gaskets or epoxy thereby eliminating the frustrating aspects of top plate assembly, the risk of fracturing ATR crystals and top plate leakage.

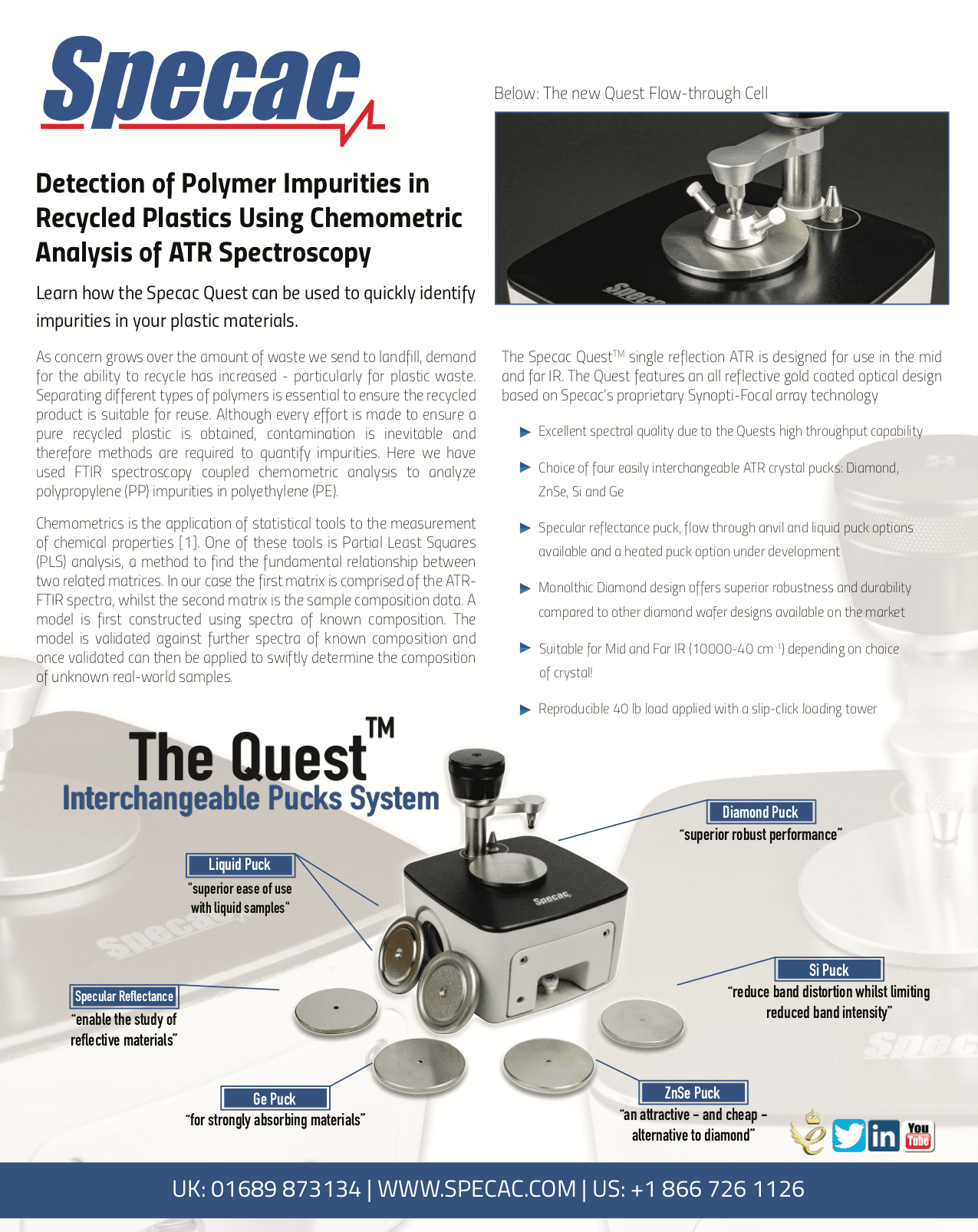

To accommodate lower budgets; less expensive Quest top plate options include Germanium, Silicon and Zinc Selenide. All of the ATR crystals in top plate assemblies have an anti-reflection coating on their underside surfaces for maximum energy throughput and enhanced sensitivity with the exception of the extended range Diamond top plate remaining uncoated to extend to the far-infrared. Each pre-aligned top plate is magnetically held in place and is easily interchangeable with accessory’s optical base unit.

An adjustable clamp arm assembly with a set load torque limiter screw knob is permanently affixed to the Quest’s optical unit. It provides for a consistent and reproducible load to either one of the flat or concave anvils supplied thereby enabling intimate contact of a solid sample with the ATR crystal. A volatiles cover with an o-ring seal is also supplied. An optional specular reflectance top plate is available. If the clamp arm assembly is not required for sampling, it can be conveniently rotated to a position either to the left or right side of the central post.

CLICK HERE for the User Manual and for instruction using the Quest to collect ATR spectra from powders, flat solids, pellets, beads, fibers, liquids and pastes.

For more demanding extreme conditions sample analysis then refer to Golden Gate Single Reflection Diamond ATR accessory which is capable of performing at cryogenic temperatures down to -150°C and at elevated temperatures up to 300°C with added feature of supercritical fluid pressures up to 6000 psi using the appropriate top plates. REFLEX Analytical welcomes your contact to discuss your application demands.

Send This Page to a Colleague
Quest Diamond ATR
Quest High Throughput Single Reflection Diamond ATR

Spectral Range 7,800cm-1 to 400cm-1 AR Coated Diamond

Pressure Clamp for Reproducible Load

Interchangeable ATR Top Plates: Diamond ZnSe Si Ge

Optional 110°C Heated Top Plates
$7,295.00
10800
Quest Si ATR Arrow Kit
includes accessory, puck and 100 arrows

Quest High Throughput Single Reflection Silicon Wafer ATR Arrow Kit

Spectral Range 8000cm-1 to 33cm-1

Pressure Clamp for Reproducible Load

Interchangeable ATR Top Plates: Diamond ZnSe Si Ge

Optional 110°C Heated Top Plates

Product DataSheet and User Manual
$5,885.00
10884
Quest Extended Range Diamond ATR
Quest High Throughput Extended Range Single Reflection Diamond ATR

Spectral Range 10,000cm-1 to 40cm-1 Non-AR Coated Diamond

Pressure Clamp for Reproducible Load

Interchangeable ATR Top Plates: Diamond ZnSe Si Ge

Optional 110°C Heated Top Plates
$7,295.00
10801
Quest ZnSe ATR
Quest High Throughput Single Reflection ZnSe ATR

Spectral Range 7,800cm-1 to 500cm-1 AR Coated ZnSe

Pressure Clamp for Reproducible Load

Interchangeable ATR Top Plates: Diamond ZnSe Si Ge

Optional 110°C Heated Top Plates
$4,490.00
10802
Quest Ge ATR
Quest High Throughput Single Reflection Germanium ATR

Spectral Range 5,500cm-1 to 480cm-1 AR Coated Ge

Pressure Clamp for Reproducible Load

Interchangeable ATR Top Plates: Diamond ZnSe Si Ge

Optional 110°C Heated Top Plates
$4,490.00
10803
Quest Si ATR
Quest High Throughput Extended Range Single Reflection Silicon ATR

Spectral Range 8000cm-1 to 1350cm-1; 500cm-1 to 33cm-1 Enhanced AR Coated Si

Pressure Clamp for Reproducible Load

Interchangeable ATR Top Plates: Diamond ZnSe Si Ge

Optional 110°C Heated Top Plates
$4,490.00
10804
Quest 110°C Heated Extended Range Diamond ATR
Quest High Throughput Extended Range Single Reflection Diamond ATR

Includes 110°C Heated Non-AR Coated Diamond Top Plate, Temperature Controller and Software

Spectral Range 10,000cm-1 to 40cm-1 Non-AR Coated Diamond

Pressure Clamp for Reproducible Load

CLICK HERE to watch a demonstration video.
$9,765.00
10894
Quest 110°C Heated ZnSe ATR
Quest High Throughput Single Reflection ZnSe ATR

Includes 110°C Heated AR Coated ZnSe Top Plate, Temperature Controller and Software

Spectral Range 7,800cm-1 to 500cm-1 AR Coated ZnSe

Pressure Clamp for Reproducible Load

CLICK HERE to watch a demonstration video.
$8,020.00
10895
Diamond Top Plate Only
Quest Diamond ATR Top Plate Only

Spectral Range 7,800cm-1 to 400cm-1 AR Coated Diamond

Product DataSheet CLICK HERE
$4,685.00
10810
Quest Si Arrow Evaluation Kit
includes puck only and 10 arrows

Quest Silicon Arrow Evaluation Kit

Spectral Range 8000cm-1 to 33cm-1
$465.00
10880
Extended Range Diamond ATR Top Plate Only
Quest Extended Range Diamond Top Plate Only

Spectral Range 10,000cm-1 to 40cm-1 Non-AR Coated Diamond

Product DataSheet CLICK HERE
$4,685.00
10811
Quest Si Arrow Starter Kit
includes puck only and 100 arrows

Quest Silicon Arrow Starter Kit

Spectral Range 8000cm-1 to 33cm-1
$4,005.00
10885
Quest Arrow Puck Only
sold individually

Quest Arrow Puck Only
$339.00
10883
Quest Si Arrows Only
sold as a package of 100

Quest Silicon Arrows Only

Spectral Range 8000cm-1 to 33cm-1
$3,545.00
10882
ZnSe Top Plate Only
Quest ZnSe ATR Top Plate Only

Spectral Range 7,800cm-1 to 500cm-1 AR Coated ZnSe

Product DataSheet CLICK HERE
$1,295.00
10812
Ge Top Plate Only
Quest Ge ATR Top Plate Only

Spectral Range 5,500cm-1 to 480cm-1 AR Coated Ge

Product DataSheet CLICK HERE
$1,295.00
10813
Si Top Plate Only
Quest Extended Range Si Top Plate

Spectral Range 8000cm-1 to 1350cm-1; 500cm-1 to 33cm-1 Enhanced AR Coated Si

Product DataSheet CLICK HERE
$1,295.00
10819
Specular Reflectance Top Plate Only
Quest Specular Reflectance Top Plate Only

Product DataSheet CLICK HERE
$335.00
10816
Volatiles Cover
Quest Volatiles Cover

Product DataSheet CLICK HERE
$100.00
10825
Liquid Flow Through Anvil
Quest Liquid Flow Through Anvil

Product DataSheet CLICK HERE
$605.00
10822
Diamond Liquid Plate Only
Quest Diamond Liquid Plate Only

Spectral Range 7,800cm-1 to 400cm-1 AR Coated Diamond

Product DataSheet CLICK HERE
$4,675.00
10860
Extended Range Diamond Liquid Plate Only
Quest Extended Range Diamond Liquid Plate Only

Spectral Range 10,000cm-1 to 40cm-1 Non-AR Coated Diamond

Product DataSheet CLICK HERE
$4,675.00
10861
ZnSe Liquid Plate Only
Quest ZnSe Liquid Plate Only

Spectral Range 7,800cm-1 to 500cm-1 AR Coated ZnSe

Product DataSheet CLICK HERE
$1,415.00
10862
Ge Liquid Plate Only
Quest Ge Liquid Plate Only

Spectral Range 5,500cm-1 to 480cm-1 AR Coated Ge

Product DataSheet CLICK HERE
$1,415.00
10863
Si Liquid Plate Only
Quest Extended Range Si Liquid Plate Only

Spectral Range 8000cm-1 to 1350cm-1; 500cm-1 to 33cm-1 Enhanced AR Coated Si

Product DataSheet CLICK HERE
$1,415.00
10864
110°C Heated Extended Range Diamond Top Plate
Quest 110°C Heated Extended Range Diamond Top Plate with temperature controller and software

Spectral Range 10,000cm-1 to 40cm-1 Non-AR Coated Diamond

CLICK HERE to watch a demonstration video.
$6,985.00
10890
110°C Heated Znse Top Plate
Quest 110°C Heated Znse Top Plate with temperature controller and software

Spectral Range 7,800cm-1 to 500cm-1 AR Coated ZnSe

CLICK HERE to watch a demonstration video.
$5,480.00
10891
110°C Heated Extended Range Diamond Top Plate Only
Quest 110°C Heated Extended Range Diamond Top Plate Only

Spectral Range 10,000cm-1 to 40cm-1 Non-AR Coated Diamond

CLICK HERE to watch a demonstration video.
$4,960.00
10892
110°C Heated Znse Top Plate Only
Quest 110°C Heated Znse Top Plate Only

Spectral Range 7,800cm-1 to 500cm-1 AR Coated ZnSe

CLICK HERE to watch a demonstration video.
$3,665.00
10893
Temperature Controller and Software Only
Temperature Controller and Software Only for Quest 110°C Heated Top Plates

CLICK HERE to watch a demonstration video.
$1,855.00
523-214
