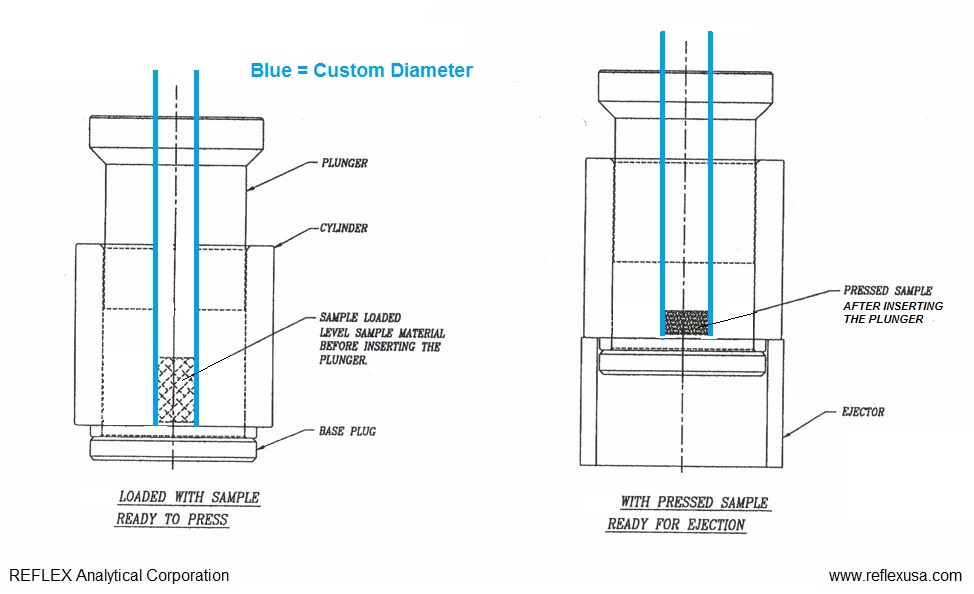

REFLEX Analytical's offers pellet mold assemblies for fluid extraction, extrusion, flow testing and pressure forming. At present, the standard die sizes include 1.125" and 2.25" diameters although customized geometries and dimensions are encouraged and available upon request.

Each die is precision fabricated from high quality hardened stainless steel and robust to withstand a maximum applied load on the 1.125" die of 38,000 lbs and 102,000 lbs for the 2.25" die.

The assembly includes a main body, an optically polished stainless steel pellet, a stainless steel plunger and a stainless steel sample extractor sleeve to facilitate sample removal. The assembly dimensions for the 1.125" die are 4" H x 2" O. D. and 4" H x 3" O. D. for the 2.25" die. Add 2" for the extractor sleeve to account for a 6" overall height.

The standard die package includes either a 1.125" or 2.25" pellet mold assembly with 12 filters pads (specify 1.125" or 2.25") and a 5.50" diameter stainless steel fluid pan.

Refer to this online product category for manual and automated pellet presses featuring programmable linear and parabolic bleed functions.
Send Page to Friend

Spare Plunger for 1.125" Pellet Mold
1.125" Diameter x 3.25" Length
Regular price: $495.00
Sale price: $195.00
2090SP
Spare Plunger for 2.25" Pellet Mold
2.25" Diameter x 4.0" Length
Regular price: $595.00
Sale price: $295.00
2091SP
5.50" Stainless Steel Pan for Fluid Extraction
4.50" working area diameter x 0.75" depth
Regular price: $99.00
Sale price: $69.00
237005
1.125" Filter Pads(12) for Fluid Extraction
1.125" Diameter x 1/8" Thickness
Regular price: $39.00
Sale price: $19.00
2090FP
2.25" Filter Pads(12) for Fluid Extraction
2.25" Diameter x 1/8" Thickness
Regular price: $89.00
Sale price: $69.00
2091FP
